Maritime cranesProductsPort equipmentPortal cranesLPS 550

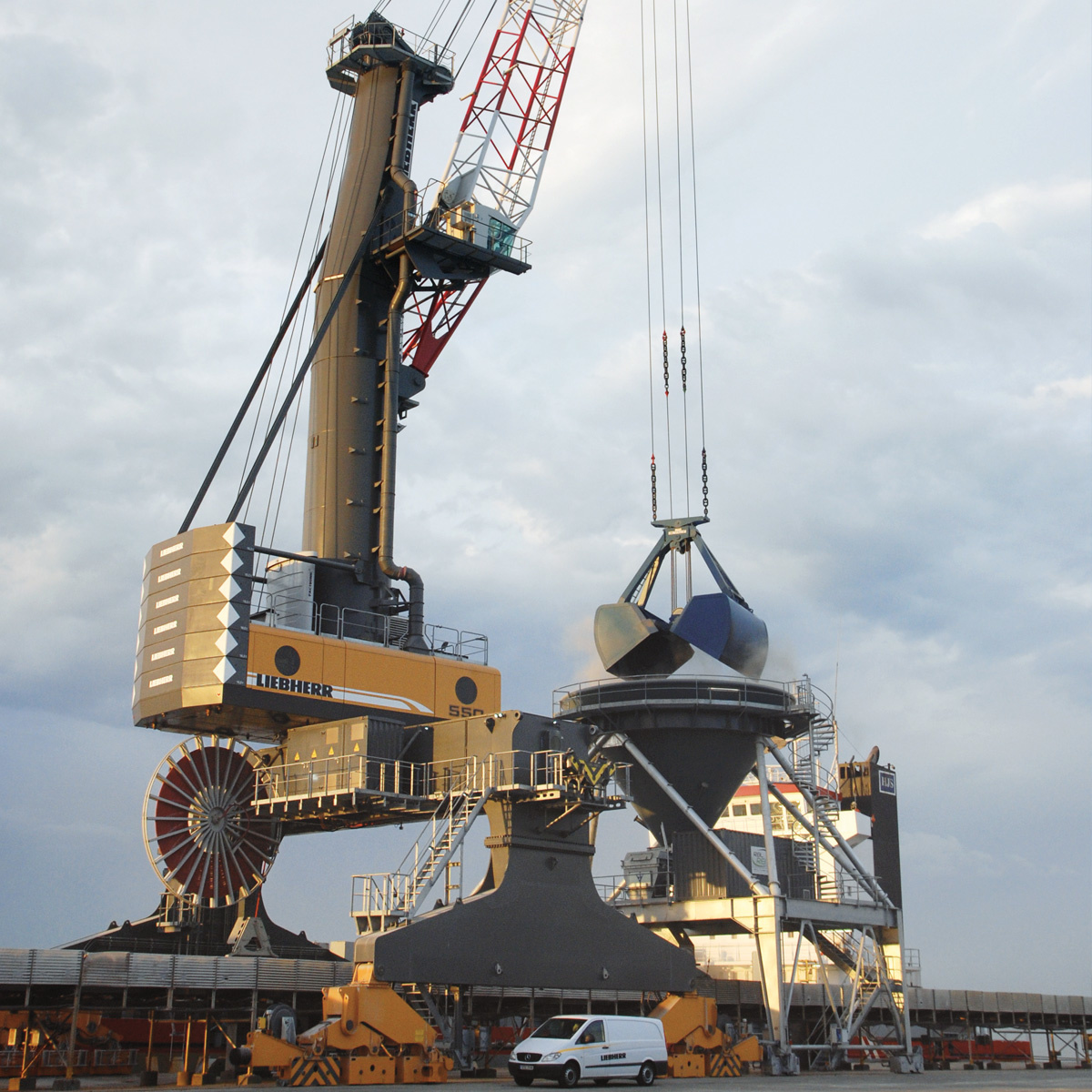

With an outreach of 54 metres, the LPS 550 is the ideal portal crane for handling bulk cargoes in the Capesize ship class. For container handling ships of the Post-Panamax class are the optimal working environment for the LPS 550. The rail-mounted portal solution can also manage general cargoes and heavy-duty lifting up to 144 tonnes.

metricimperial

  • Lifting capacity (max.) - 144 t

  • Jib length - 54 m

  • Total weight - 439 t

  • Hoisting/lowering max. - 120 m/min

product image 0
Stage V / Tier 5 final engine
The Liebherr mobile harbour crane is equipped with the latest generation of diesel engines for the exhaust emissions standards of EU stage V or EPA Tier 5 final.
Driver's cab
Noise protection, windshield wiper, air conditioning. The ergonomic and comfortable features of the cab increase the concentration and reduce the fatigue of the crane operator – for consistently high productivity and a high level of safety.
Main supply
The main supply can be effected via low voltage (400 V) or high voltage (1 kV - 20 kV). The cable drum is secured to the portal and independently takes care of the unwinding and winding of the power cable.
Anti-collision protection
Buffers are provided at all 4 corners of the portal as collision protection. Visible limit switches can be installed as additional security.
Safety devices
The safety of people, the infrastructure and the environment takes top priority. Our mobile harbour crane has a number of precautionary measures for increased safety in your port.
Storm protection
The manual storm anchor is suitable for wind speeds up to 42 m/s.
Lifting capacity (max.)
144 t
Min. radius
11 m
Jib length
54 m
Total weight
439 t
Container rows max.
18
Max. ship width bulk
62 m
Max. ship width scrap
48 m
Material handling capacity bulk
1,500 t/h
Engine power
725 kW
Hoisting/lowering max.
120 m/min
Slewing max.
1.60 rpm
Luffing max.
85 m/min
Mobility
rail mounted
Fields of application
Bulk handling / Container handling / General cargo operation / Heavy lift / Scrap handling
Max. load bulk
90 t
Lifting height max.
45 m

Technical data sheet LHM 550 / LPS 550

Liebherr LHM mobile harbour cranes

Liebherr Electronics

Maritime Customer Service

Hybrid drive
Pactronic enables greater handling capacity with low fuel consumption thanks to an innovative energy-saving system.
Intelligent grabber
The innovative system detects the properties of the material and fills the grabber optimally for each work cycle.
Pendulum-free load
Cycoptronic anticipates the path of the load and balances out any pendulum movements even before they develop.
Soft Touch Down
The system detects how much space is available between the container and destination and optimises the braking distance.
Synchronised lifting
One system, two cranes and only one crane operator: Sycratronic brings several cranes together as one functioning unit.
Vertical Line Finder
The avoidance of sideways pull and precise vertical lifting of the load increase the service life of the crane.
