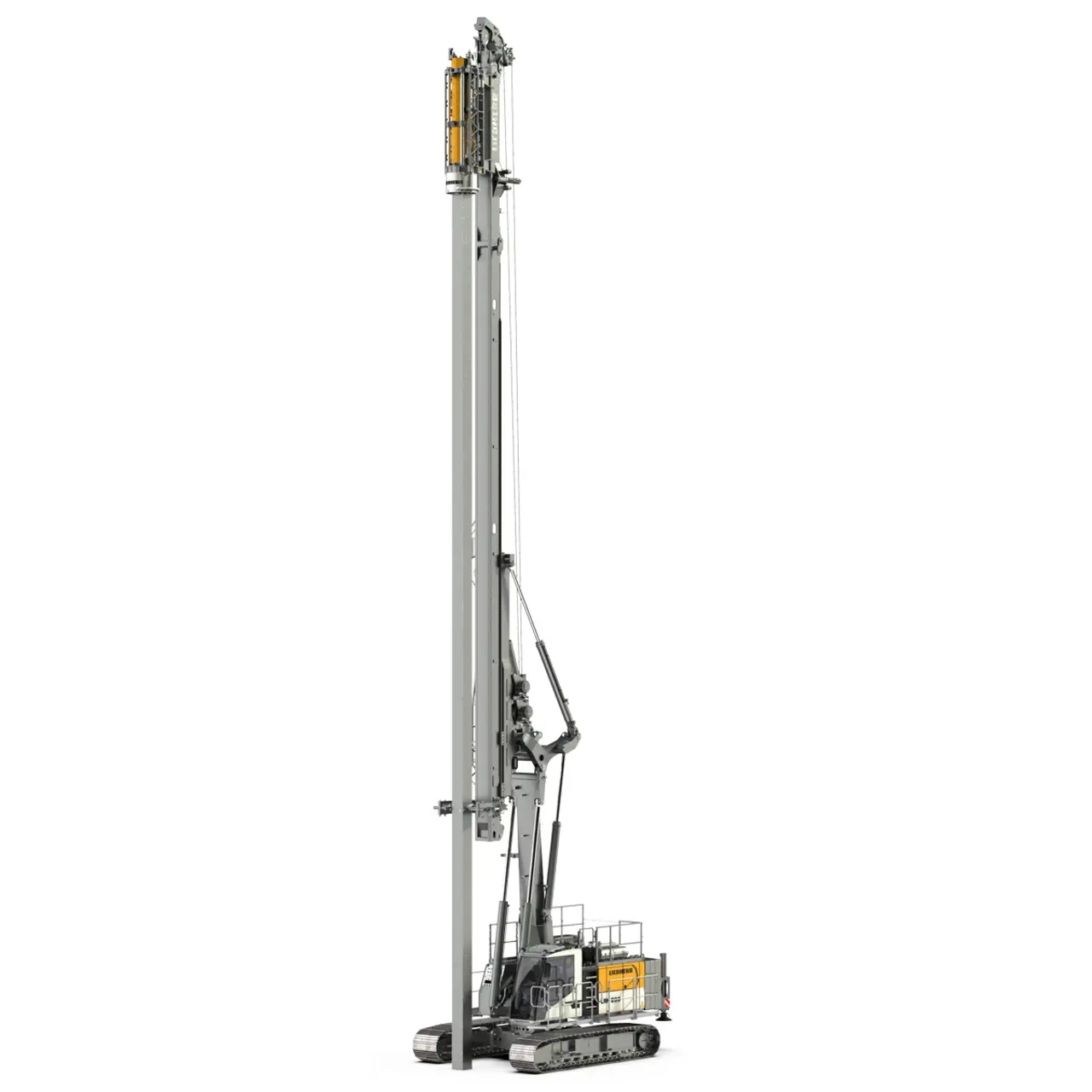

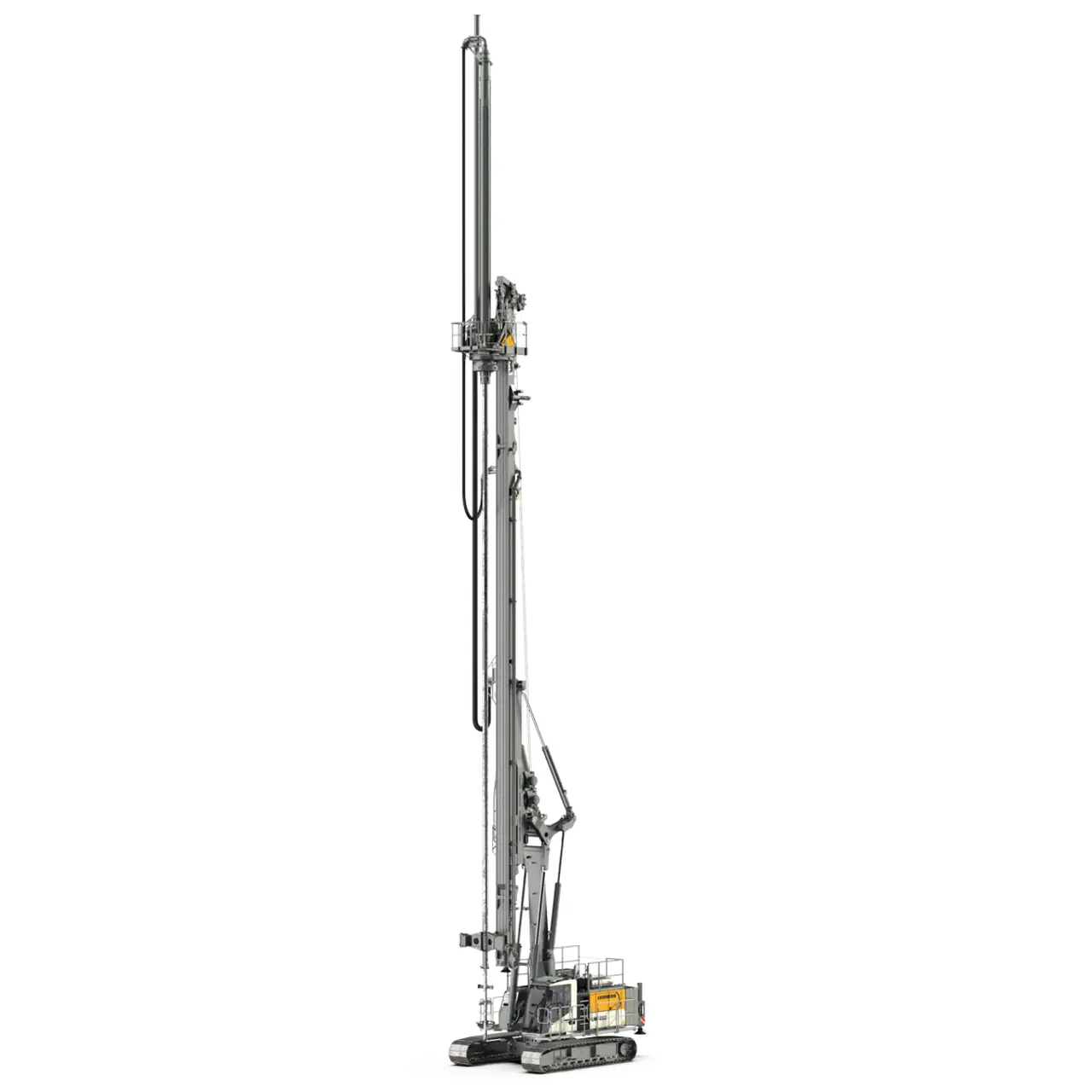

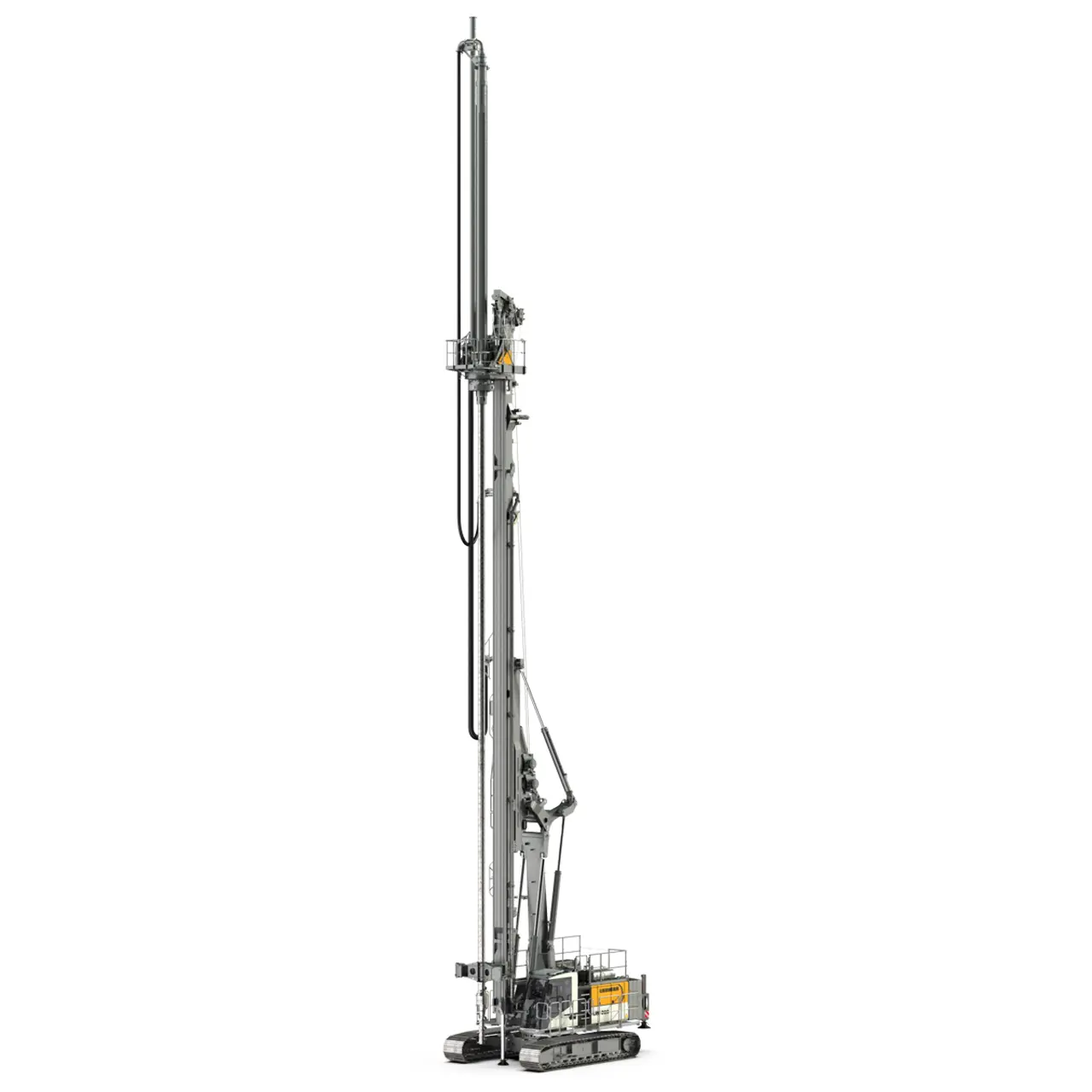

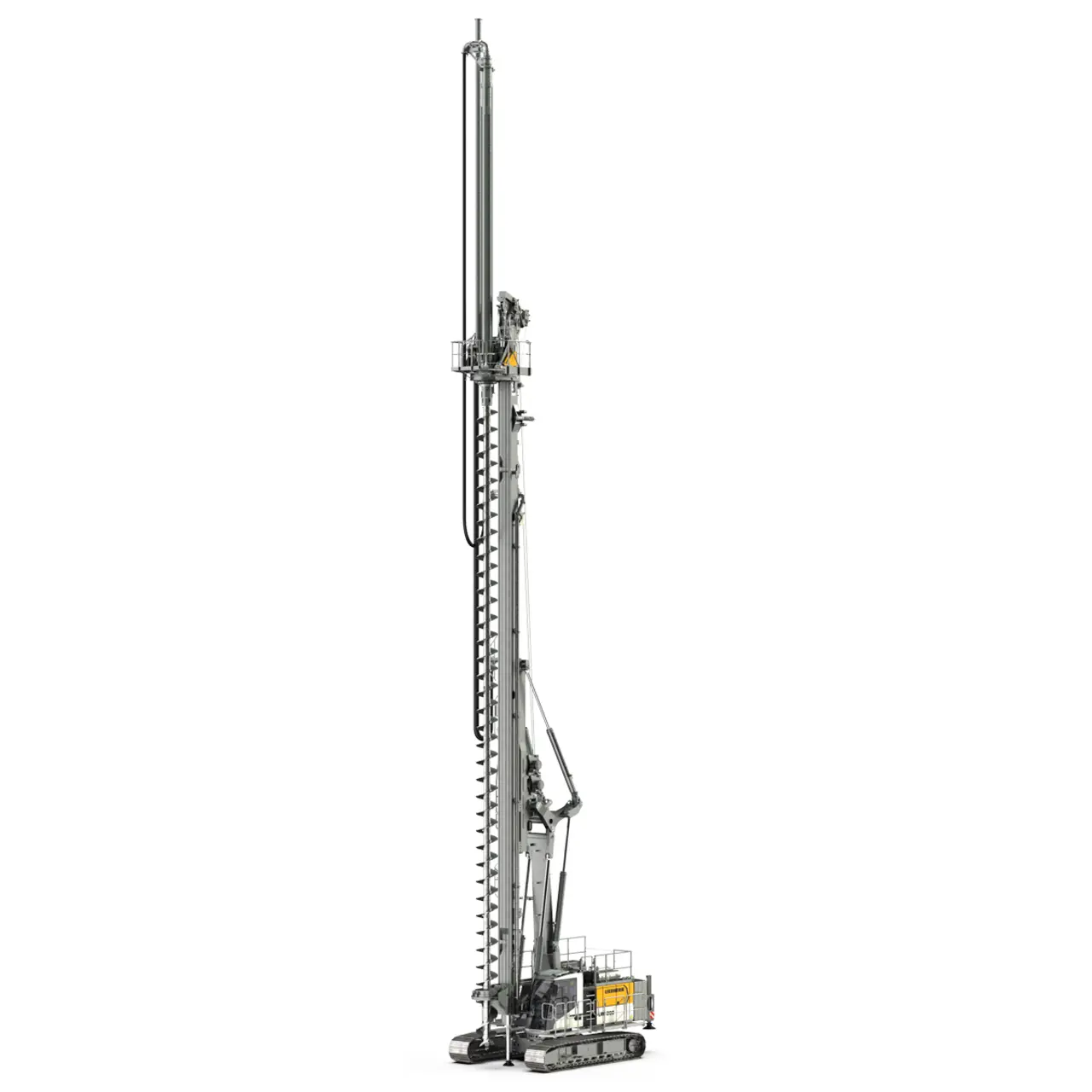

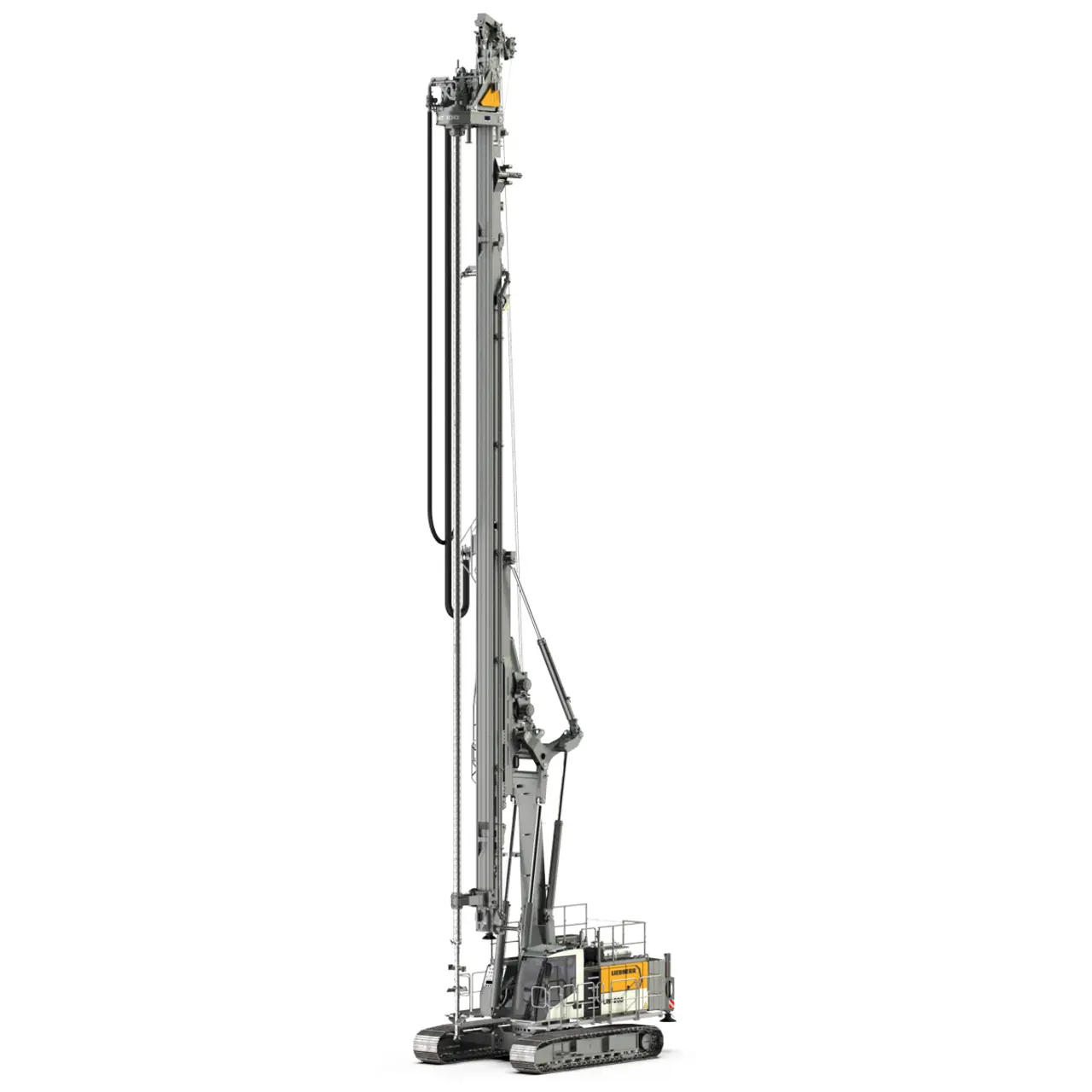

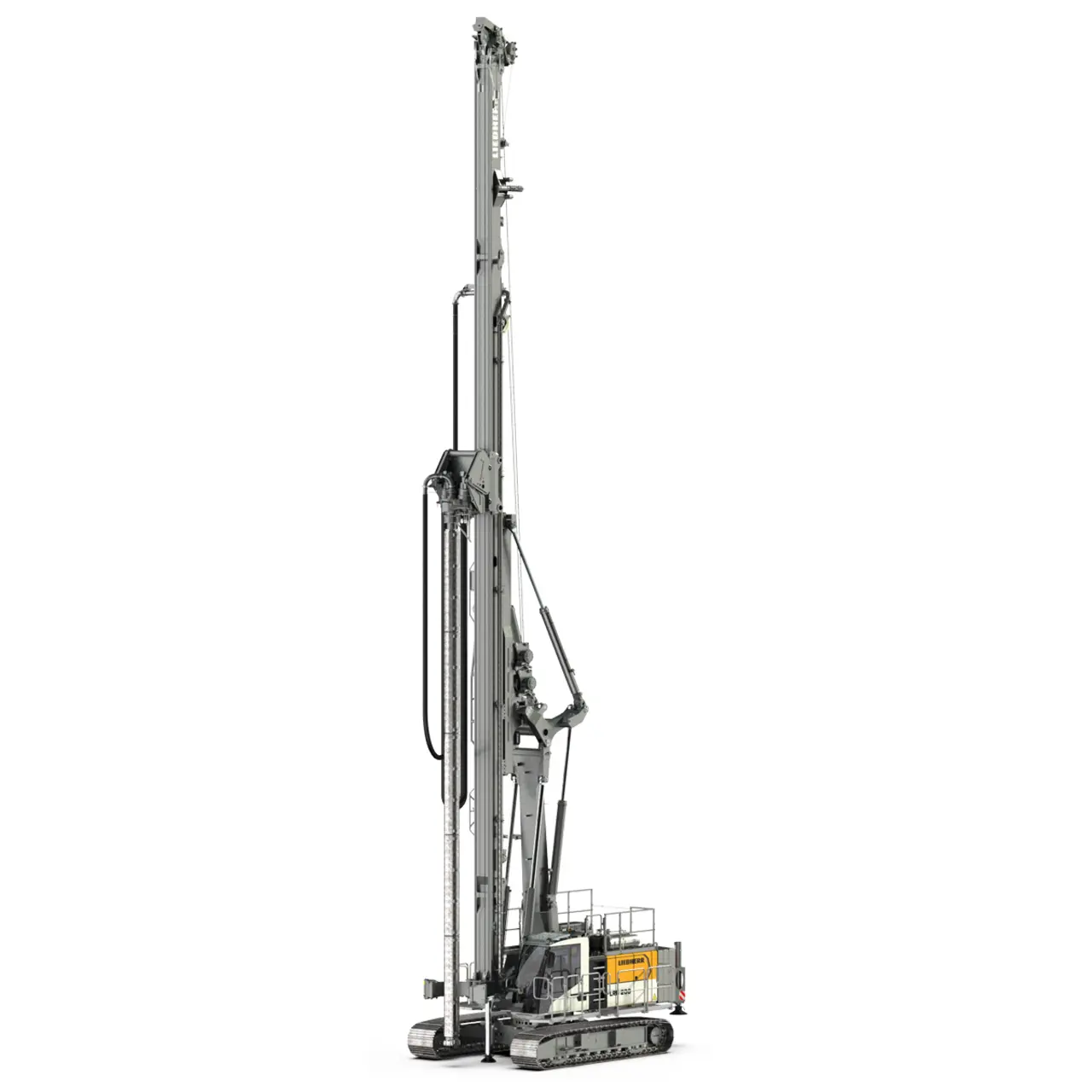

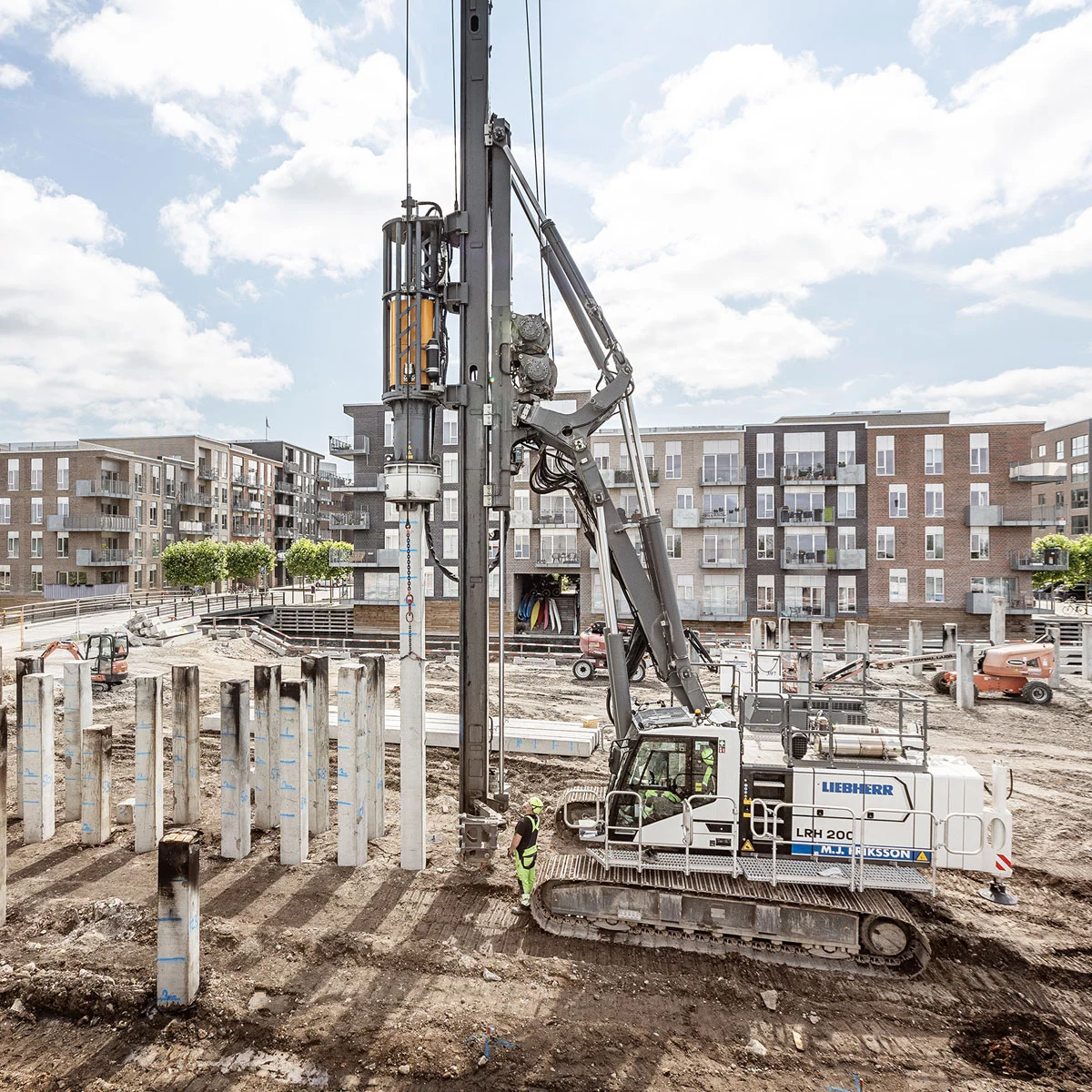

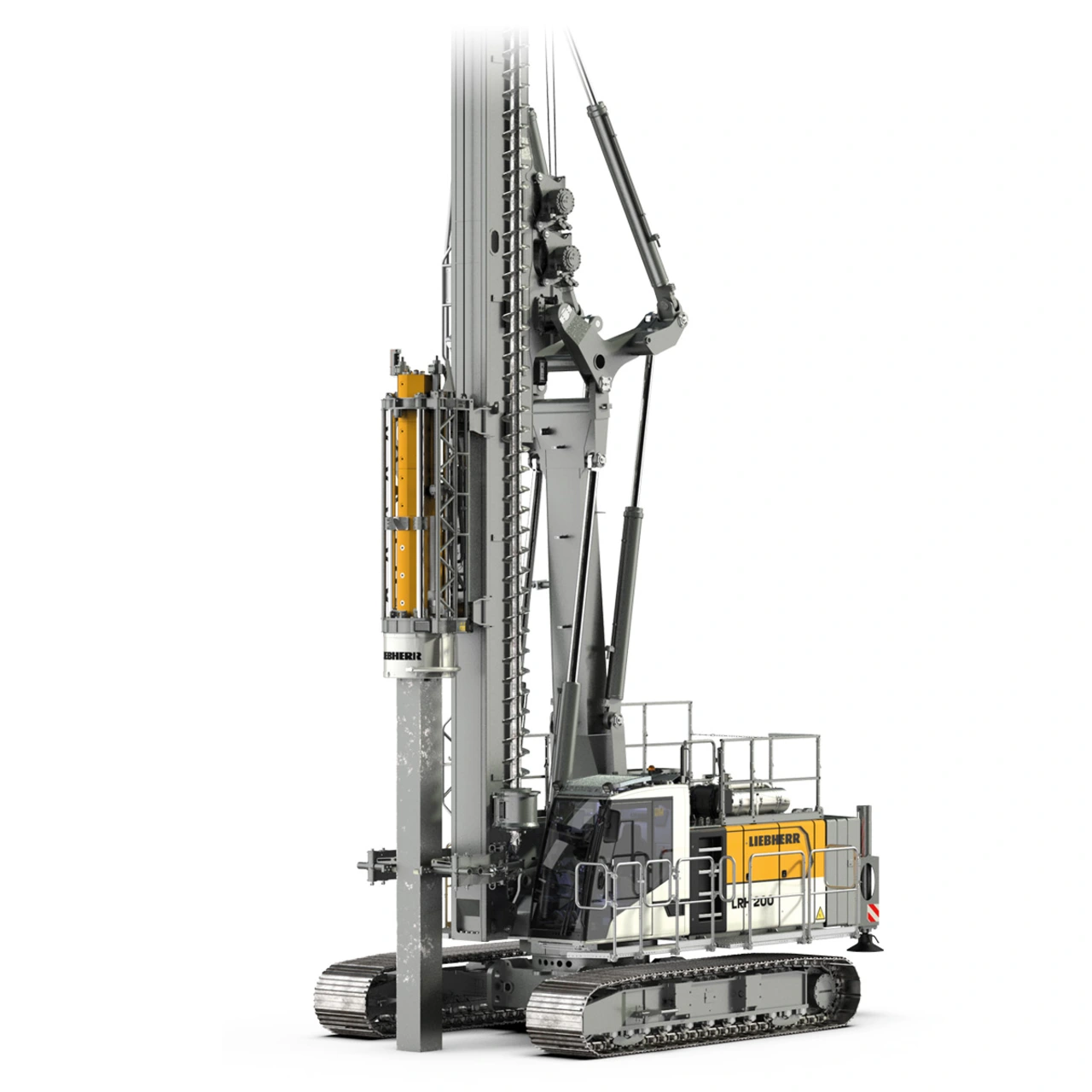

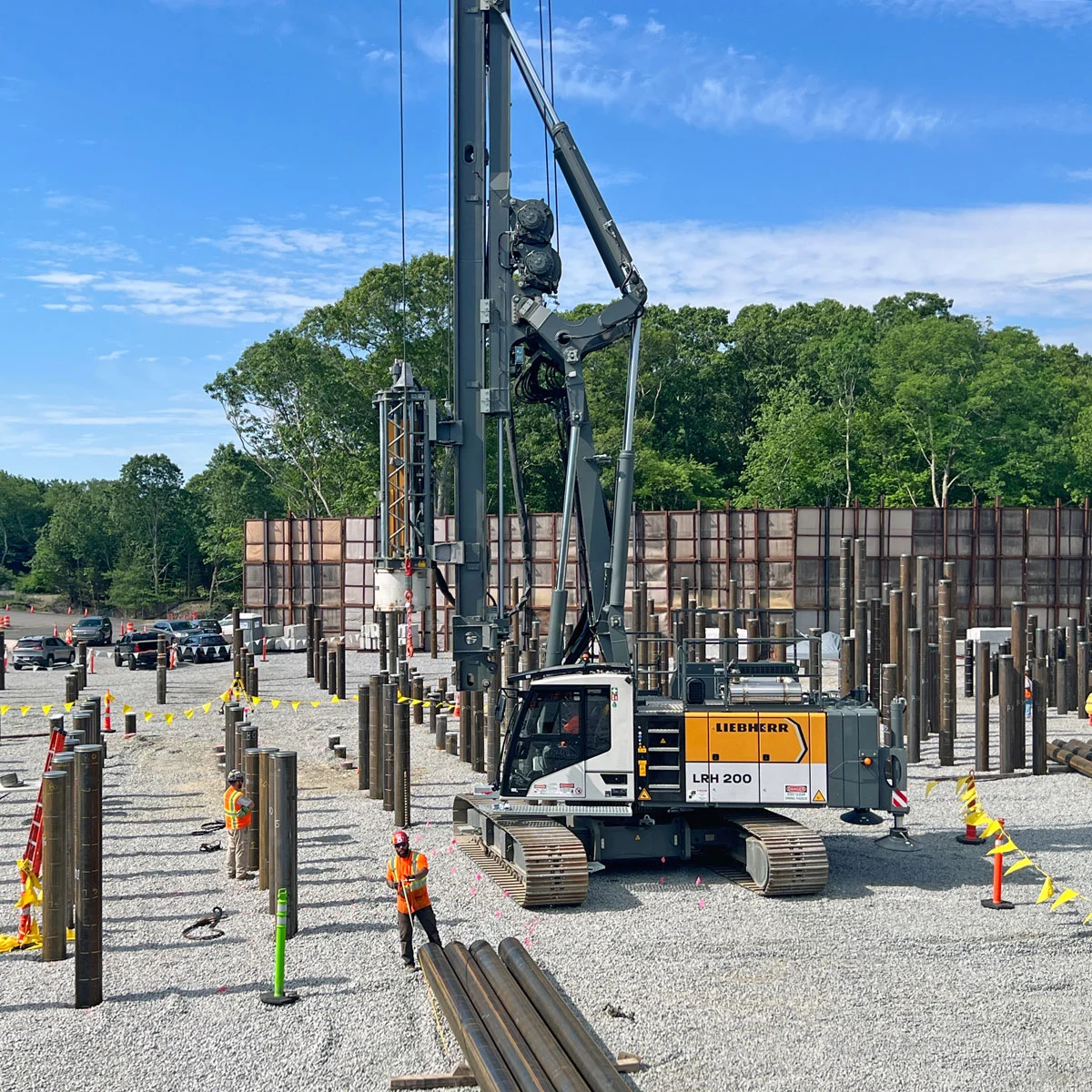

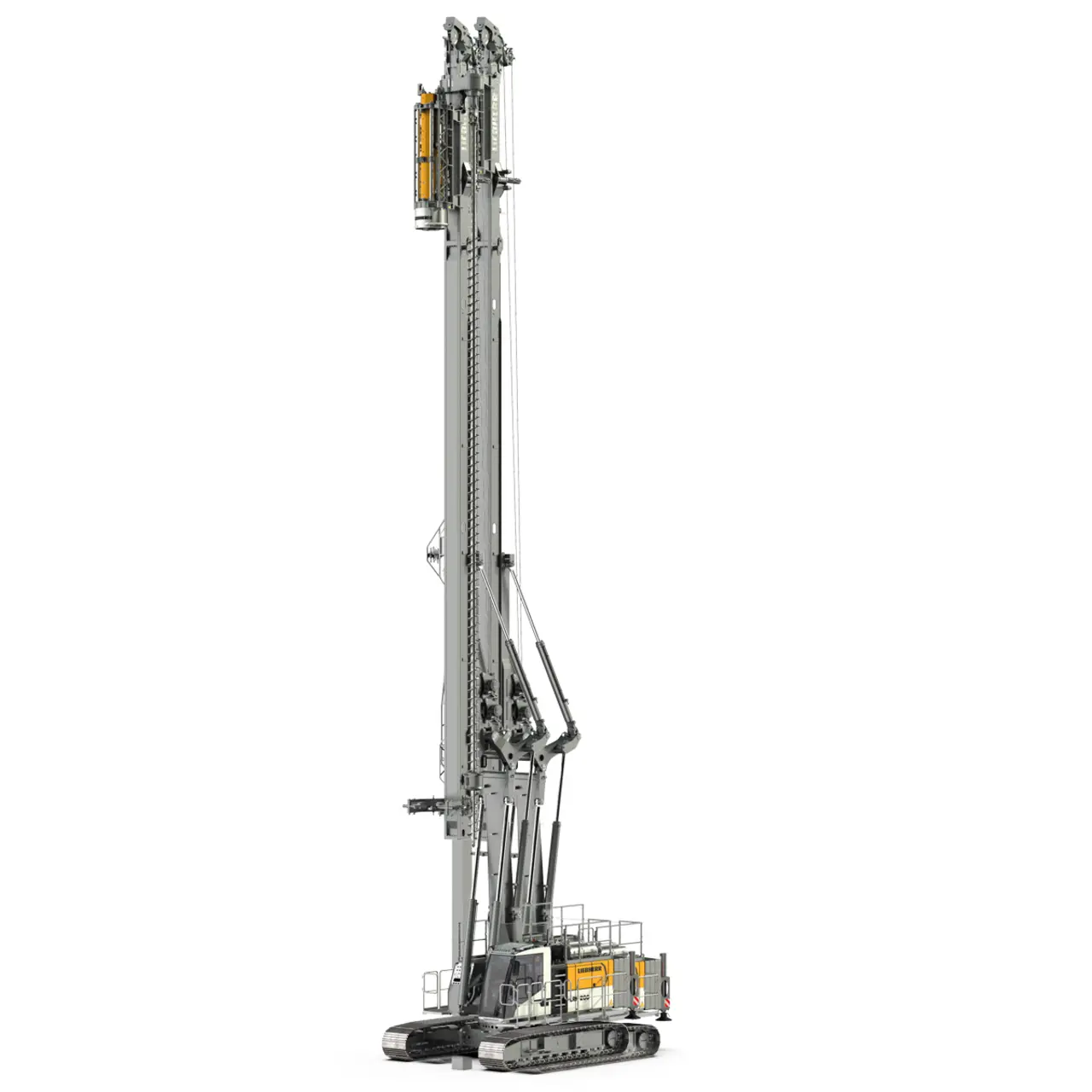

The combined piling and drilling rig LRH 200 has especially flexible leader kinematics that enable very high radii and inclinations of up to 18° in all directions. A flexible in-house hammer concept allows for the use of tamper weights with varying weights. Therefore, concrete, steel or timber piles can be optimally installed. The new LRH 200 offers a further range of applications: When configured as a drilling rig, a high-performance drilling drive provides the necessary torque for the common single pass methods such as continuous flight auger, full displacement and down-the-hole drilling pr...

    01/16

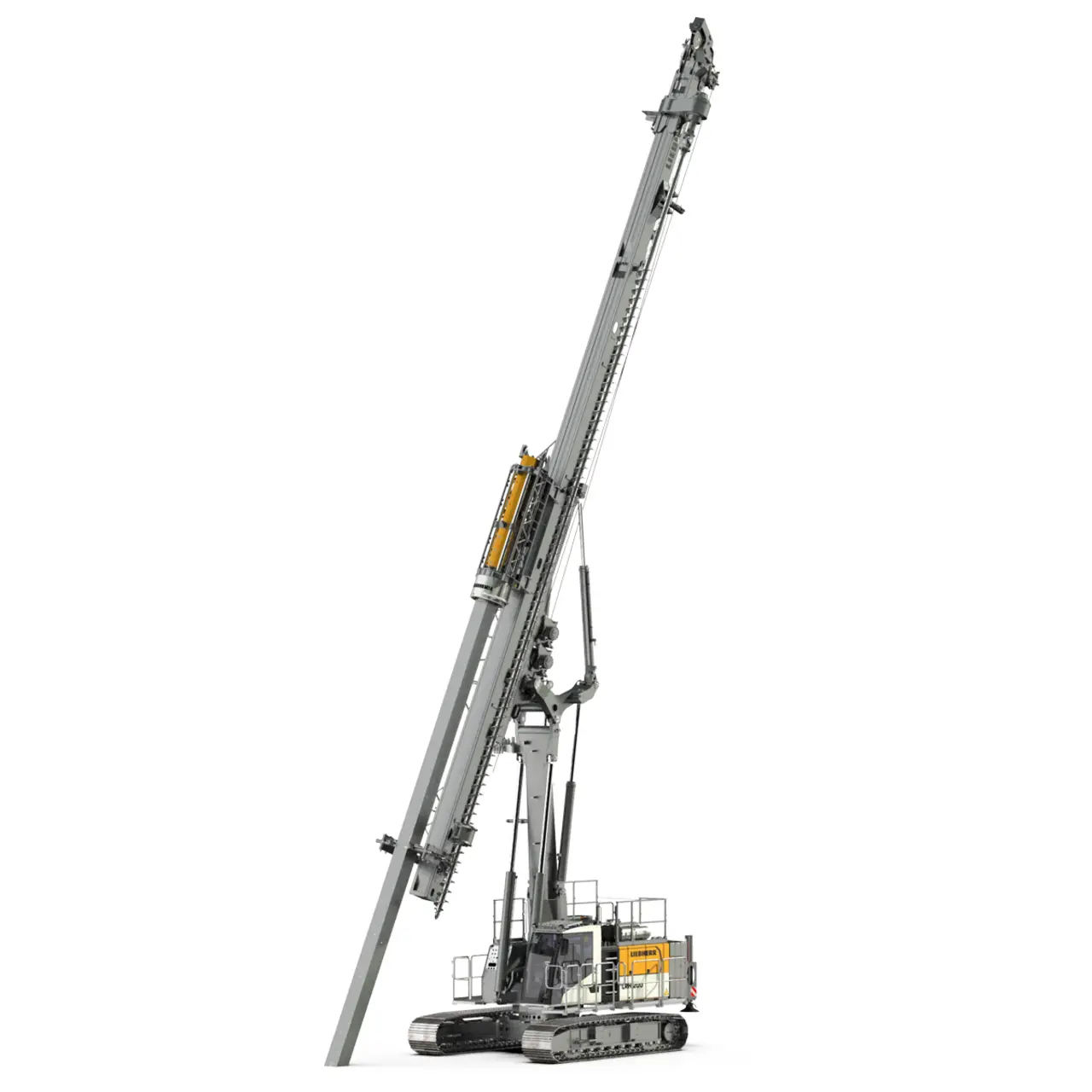

    Special radii and inclination

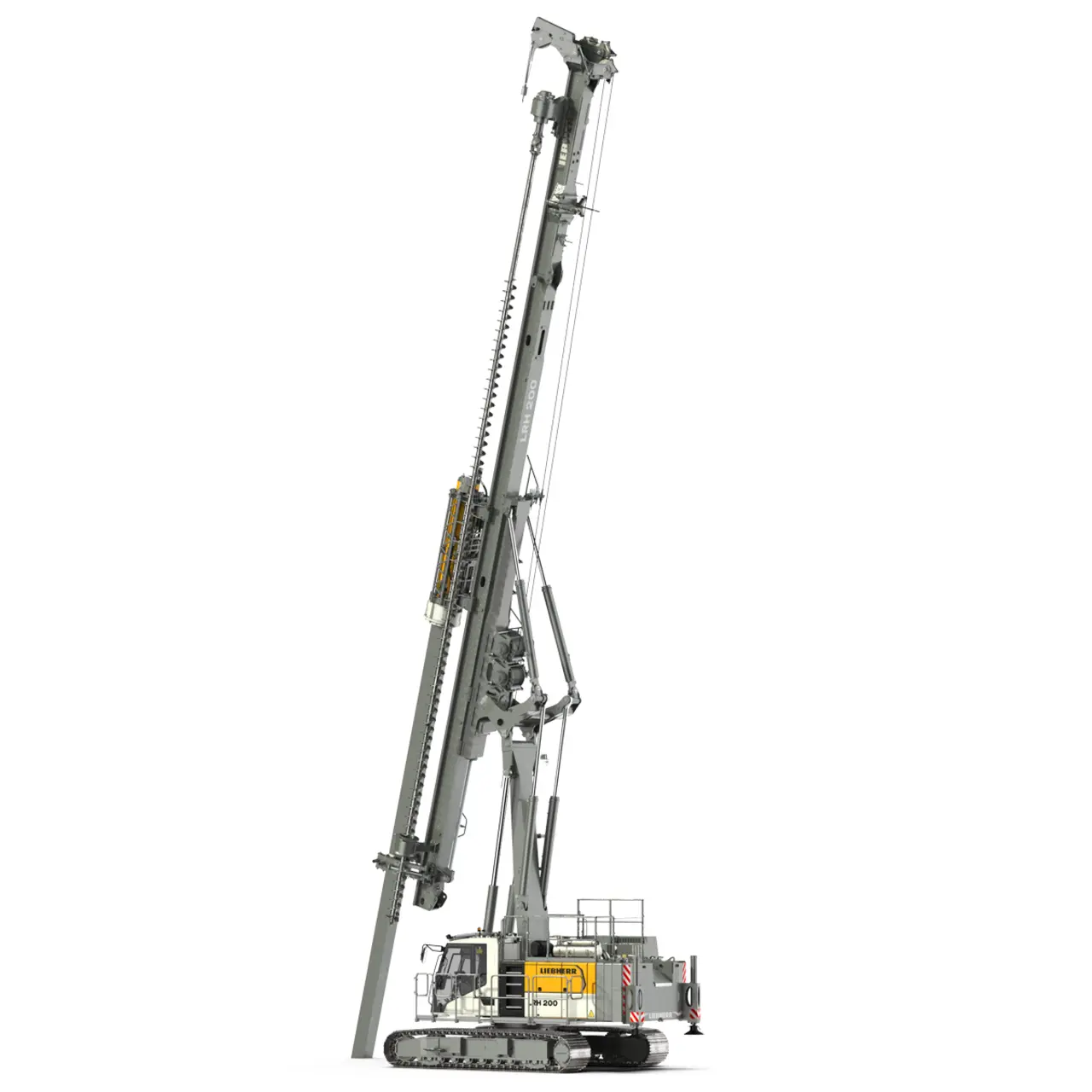

    The flexible leader kinematics allows very large radii of up to 8 m and inclinations of up to 18° in all directions. Thus, a complete pile group can be installed from one location without repositioning the carrier machine.
    13-metre vertical travel device
    The special leader kinematics allow the leader to be raised or lowered by 6.5 m above/below ground level.
    Easy transportation and quick set-up
    Basic machine and leader can be transported in one piece with all hydraulic hoses connected. The minimized assembly work allows for quick and easy transportation of the machine between jobsites.
    Safe access
    Side platform, railings and ladders are fully integrated in the new machine design and no longer need to be removed for transport.
    High operator comfort
    The innovative cabin design includes a modern air-conditioning system and an optimized view from the cabin, as well as an orthopaedic operator’s seat. All switches, joysticks and pedals are ergonomically positioned.
    Powerful drive technology
    The Liebherr-own and fuel efficient diesel engine generates the required power. In combination with the on-board hydraulics a sufficient amount of performance for various deep foundation works is provided. When using further attachments like casing oscillators, no additional power pack is needed.
