With its slewing drives, Liebherr offers its customers a series-produced product range that covers many different application areas. Available are eight gearbox sizes from the DAT 200 to the DAT 600. The coaxial planetary gearboxes are available as three-stage or four-stage units with a multitude of different gear ratios ranging from i=20 to i=1,500. The maximum dynamic torque is 142,000Nm.

metricimperial
  • Output torque Tmax - 88,000 Nm

  • Reference output torque, dynamic - 44,000 Nm

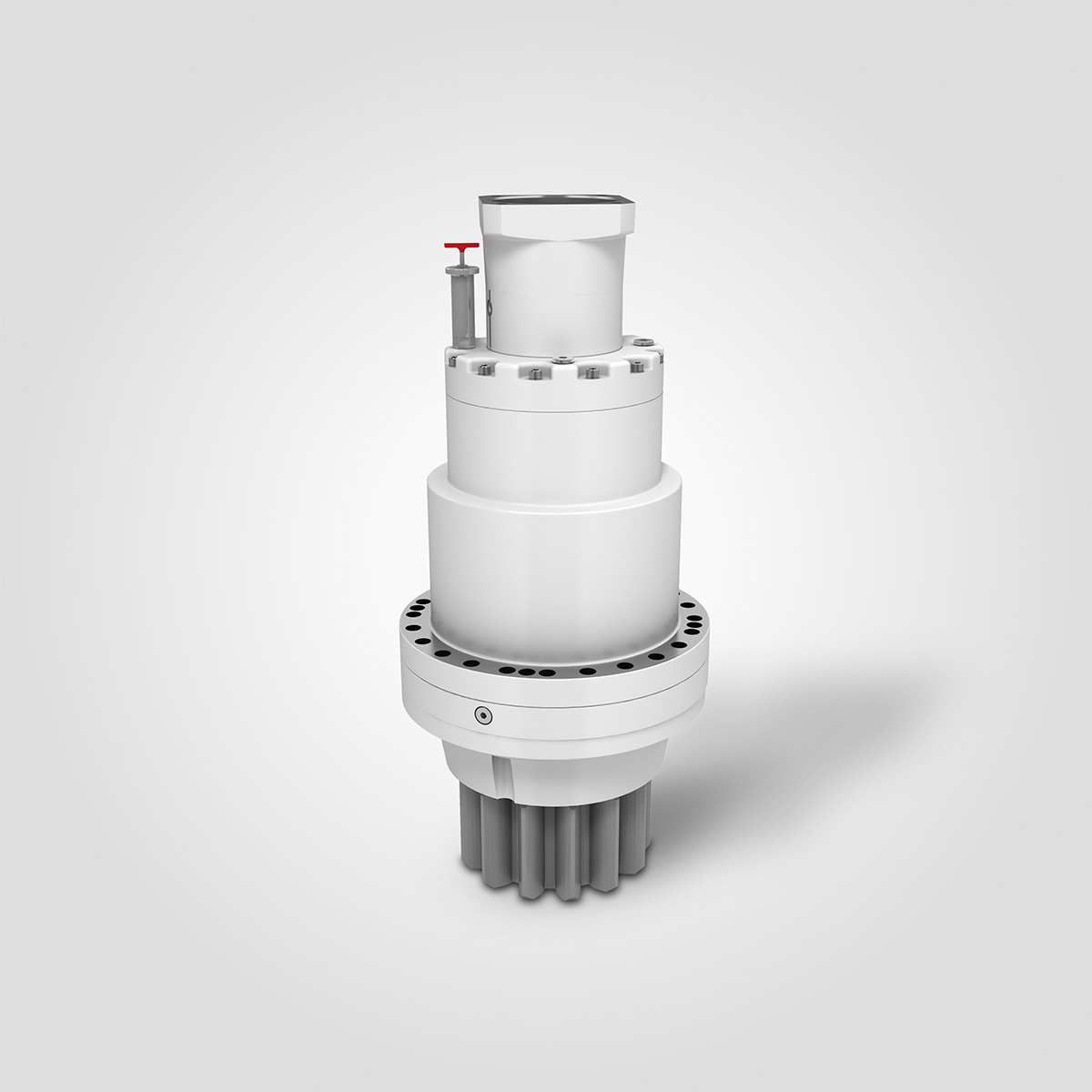

product image 0
Reference output torque, dynamic
44,000 Nm
Output torque Tmax
88,000 Nm
Diameter of centering seat
365 mm
External diameter
437 mm
Number of bolts
24
Installation depth
265 mm
Installation dimension
100 mm
Gearbox height
501 mm
Number of teeth (output pinion)
13
Diameter of bolts
22.0 mm
Flange height
115 mm
Weight (three-stage model)
405 kg
Areas of application
Industry
Gear transmission ratio (three-stage model)
1:67 - 1:250
Housing diameter
350 mm
Height of centering seat
22 mm
Height of output pinion
160 mm
Pitch circle diameter
400 mm
Gear module of output pinion
18
