The compact piling and drilling rig type LRB 23 closes the gap between the LRB 16 and the long-proven LRB 355. An impressive engine output provides the all-rounder with the necessary capacity for all common deep foundation work, such as Kelly drilling, double rotary drilling, full displacement equipment and continuous flight auger, as well as soil mixing and applications with a vibrator or hydraulic hammer.

metricimperial
  • Operating weight - 72.6 - 78.5 t

  • Max. torque - 300 kNm

  • Max. crowd force - 320 kN

  • Engine power - 600 kW

  • Pile driving with vibrator slim design, max. pile length - 22.0 m

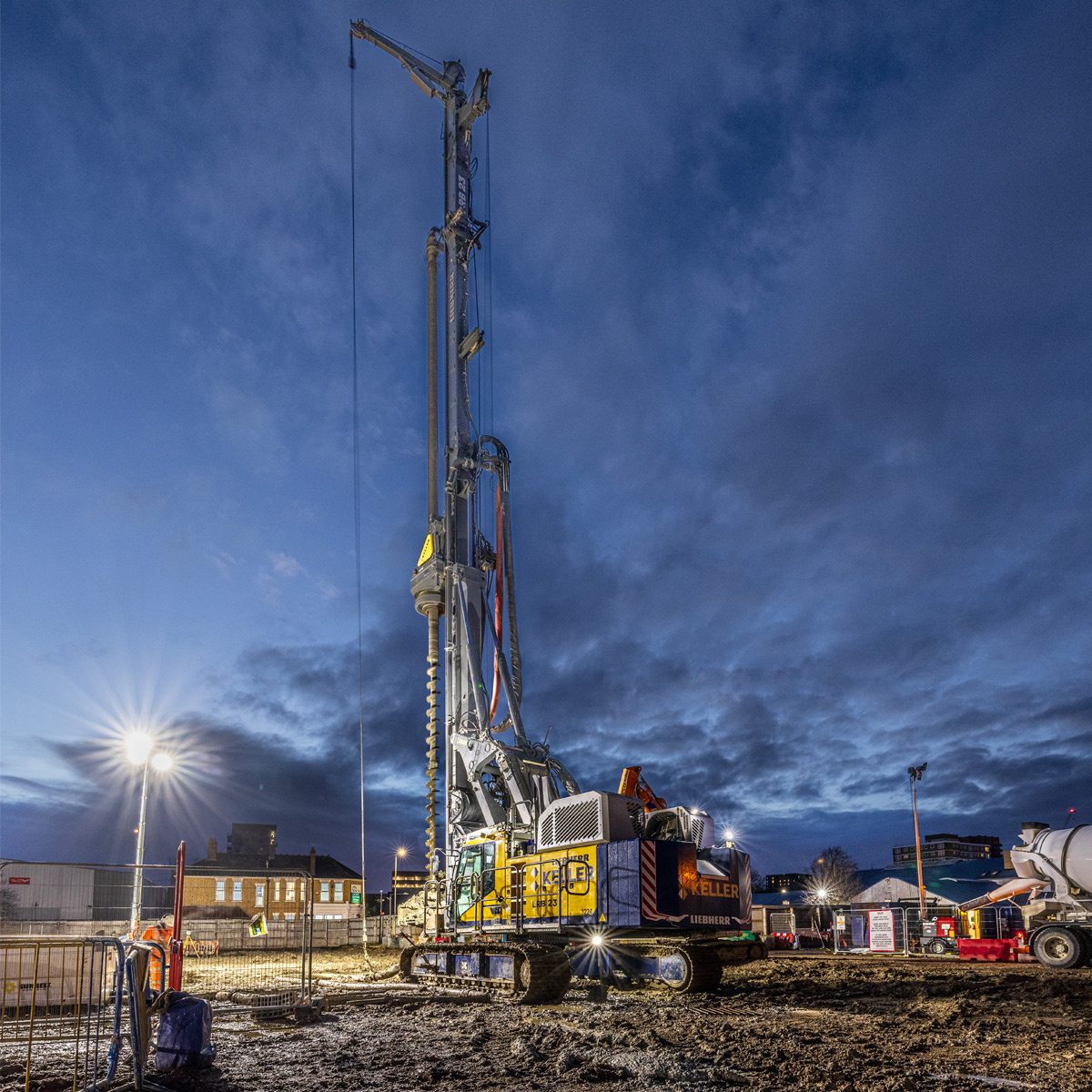

product image 0
Operating weight
72.6 - 78.5 t
Max. torque
300 kNm
Max. winch line pull
230 kN
Max. crowd force
320 kN
Engine power
600 kW
Kelly drilling, max. drilling depth
72.3 m
Kelly drilling, max. drilling diameter
2,900 mm
Continuous flight auger drilling, max. drilling depth
31.7 m
Continuous flight auger drilling, max. drilling diameter
1,200 mm
Full displacement drilling, max. drilling depth
32.2 m
Full displacement drilling, max. drilling diameter
600 mm
Double rotary drilling, max. drilling depth
22.2 m
Double rotary drilling, max. drilling diameter
900 mm
Soil mixing, max. effective length
32.0 m
Pile driving with vibrator slim design, max. pile length
22.0 m
Pile driving with hydraulic hammer, max. pile length
20.0 m
Min. transport width
3,390 mm
Min. transport height
3,600 mm
  • The all-rounder: LRB 23

  • LRB 23 Assembly process with multiple attachments

  • LRB 23 Customer testimonial

  • Vibro-Assistant

  • MyJobsite – Your work at a glance

  • LIPOS - Liebherr Positioning System

  • Video - Automatic engine stop control explained

  • Training

  • Drilling assistant

  • Diagnosis screen and remote control

  • Ground Pressure Visualization

  • Obstacle recognition

  • Rotary drive I (casing) - max. torque - 0 - 250 kNm

  • Rotary drive I (casing) - max. speed - 0 - 30 U/min

  • Rotary drive II (auger) - max. torque - 0 - 109 kNm

  • Rotary drive II (auger) - max. speed - 0 - 42 U/min

  • Torque - 0 - 180 kNm

  • Speed - 0 - 80 U/min

  • Torque - 0 - 65 kNm

  • Speed - 0 - 120 U/min

  • Torque - 297 kNm

  • Speed - 43 U/min

  • Max. ram weight - 6,000 kg

  • Max. energy - 72 kNm

  • Blow rate - 40 - 150 bpm
