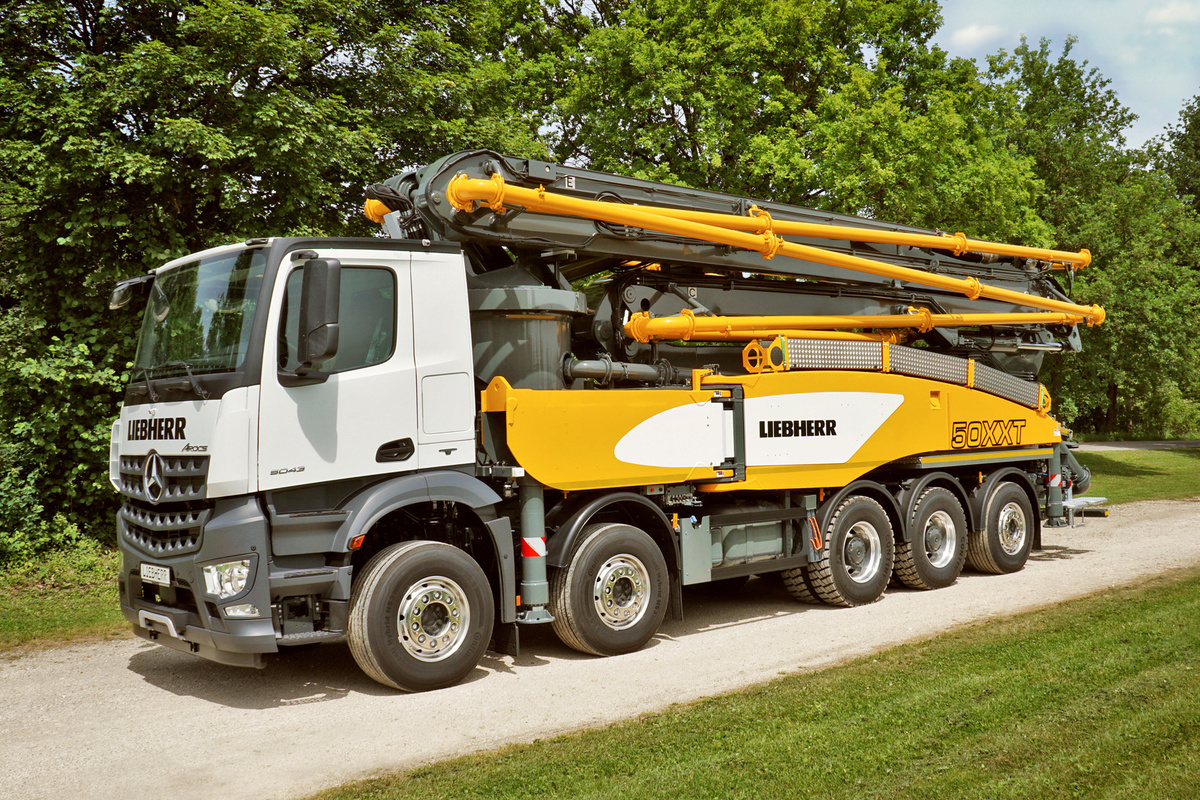

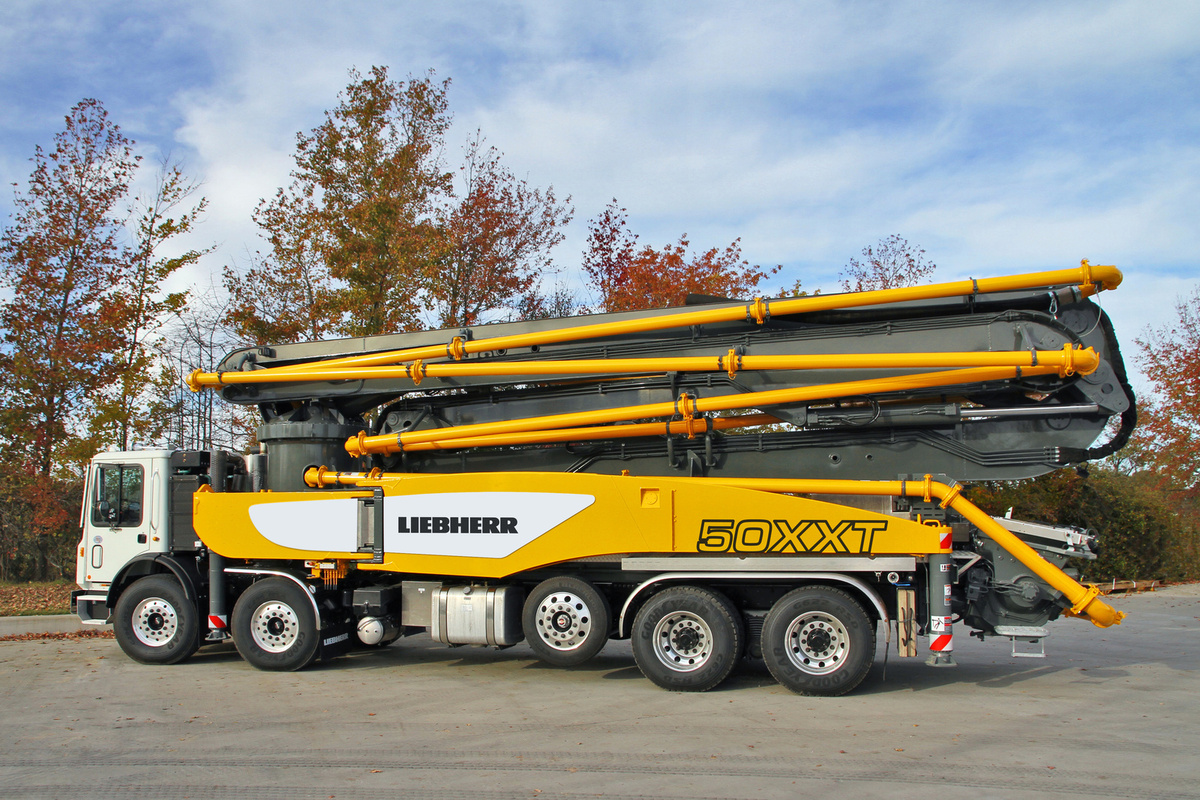

The 50 XXT with an operating weight of less than 40 t is the compact, and therefore highly flexible, truck-mounted concrete pump with large booms, even in limited space.

metricimperial
  • Vertical reach - 49.1 m

  • Unfolding height - 13.70 m

product image 0
Vertical reach
49.1 m
Horizontal reach
44.4 m
Unfolding height
13.70 m
End hose length
4 m
Supporting equipment
XXT
Variants140H170H
Maximum flow rate (rod end) (m³/h)138163
Maximum concrete pressure (rod end) (bar)8080
Pump cycles (rod end) (rpm)2832
