LRH 200

Name: LRH 200 Piling and drilling rig (LRH series)
Brand: Liebherr

Piling and drilling rig (LRH series)

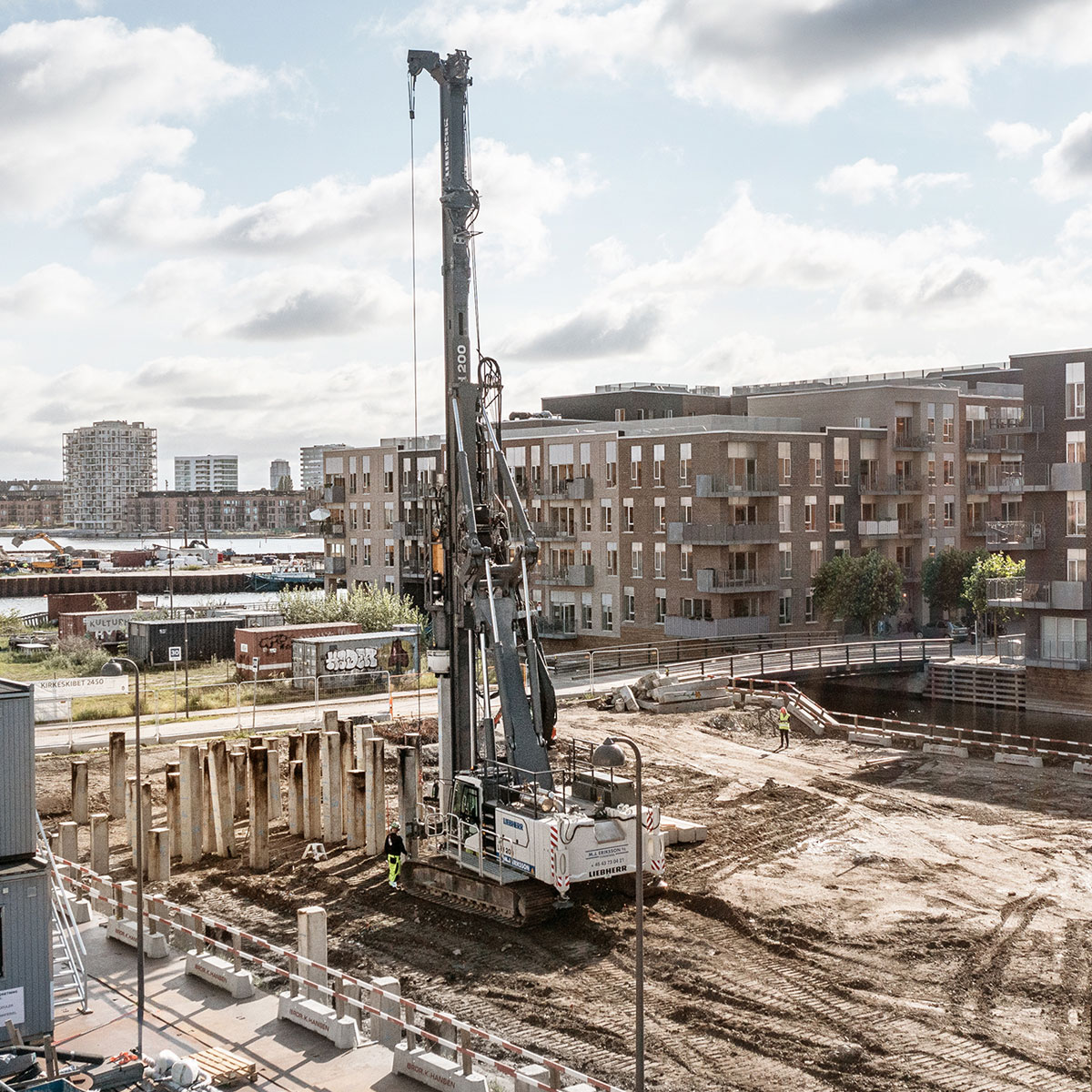

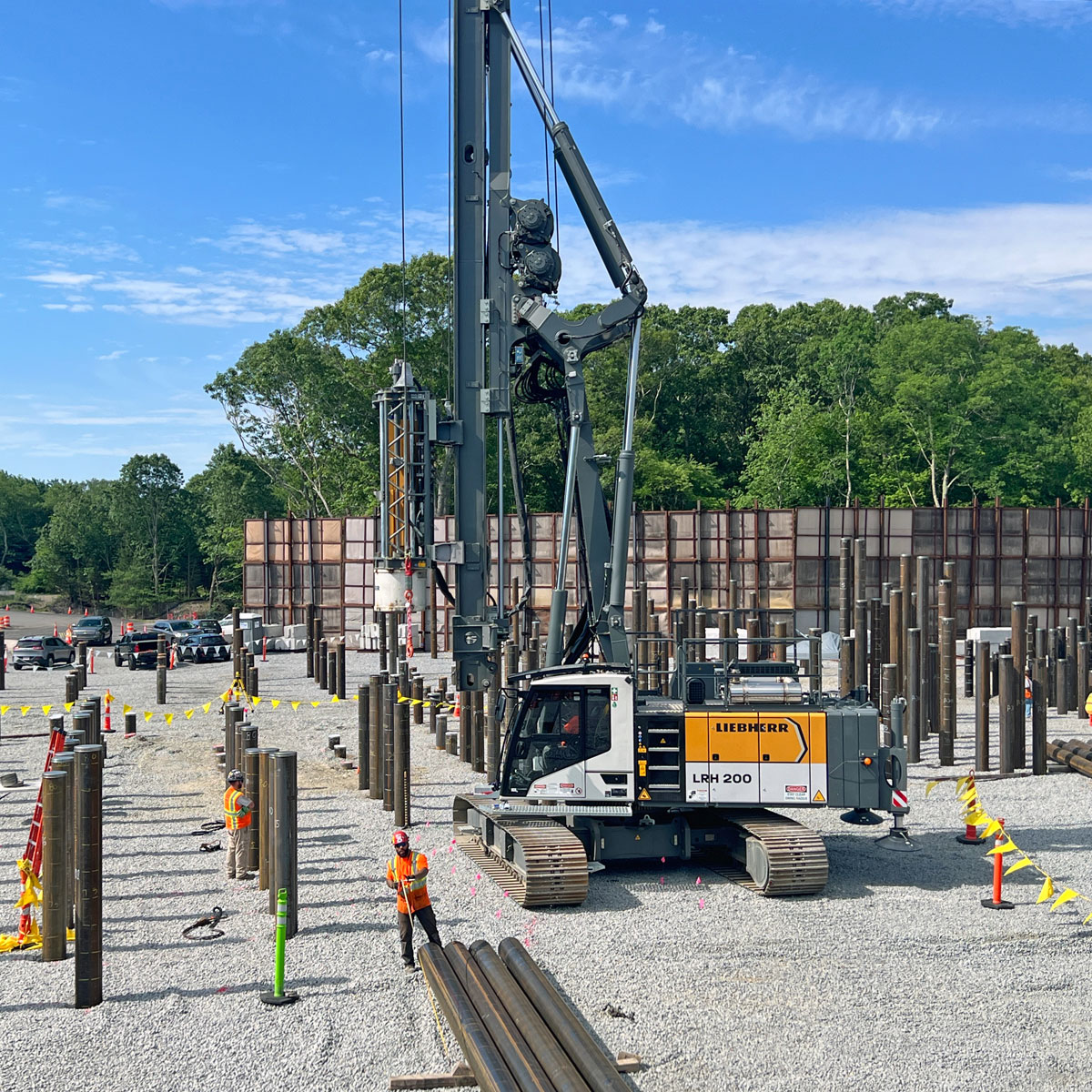

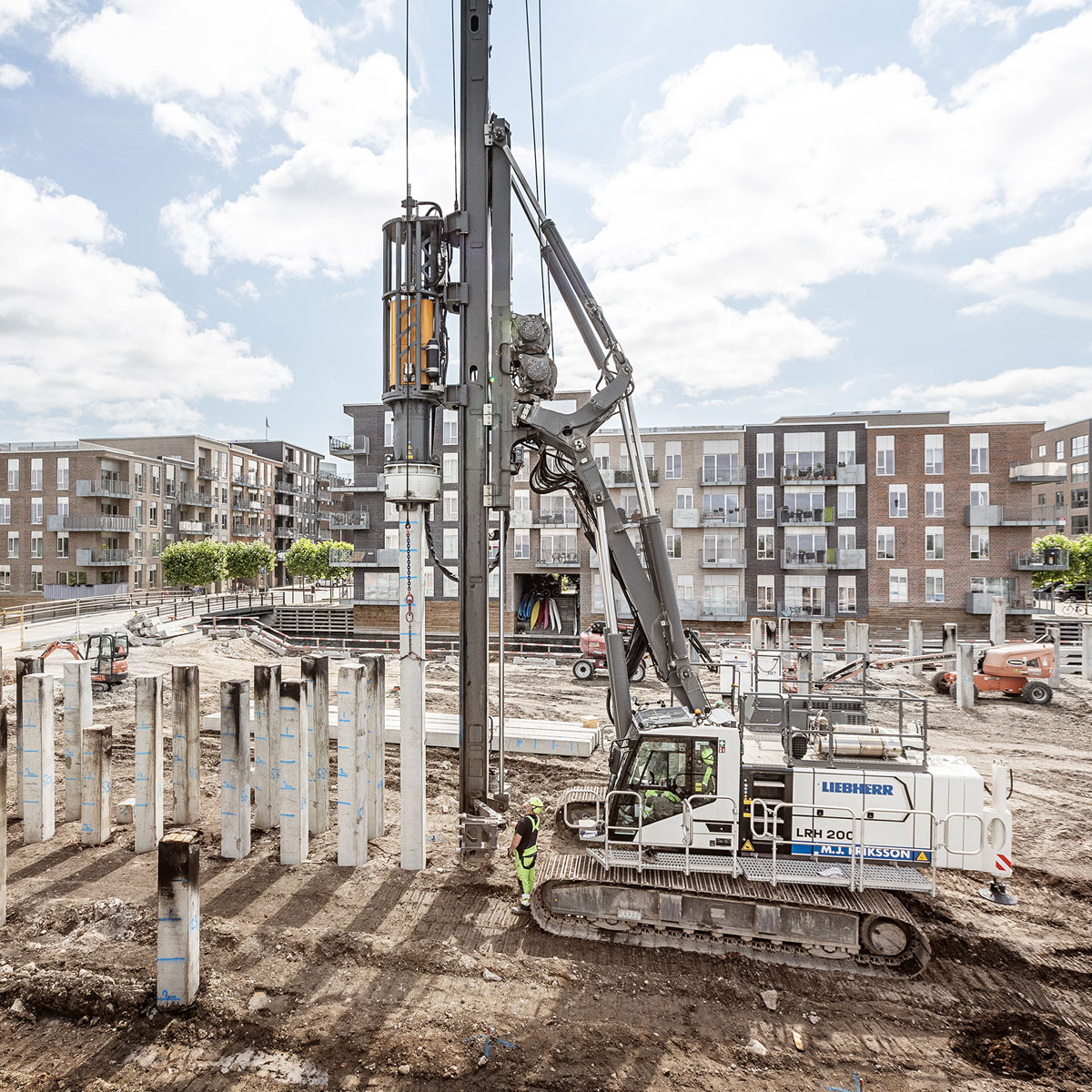

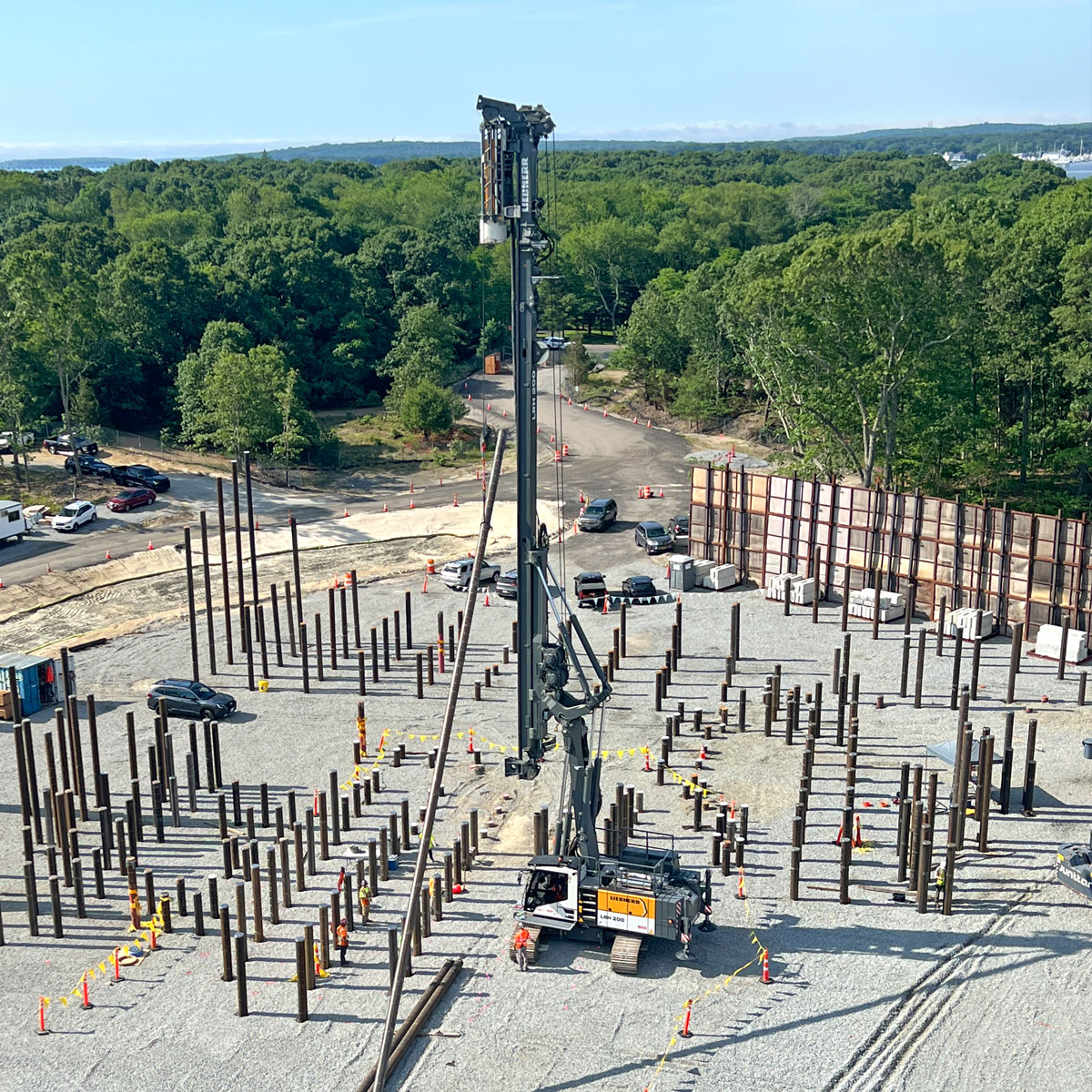

The combined piling and drilling rig LRH 200 has especially flexible leader kinematics that enable very high radii and inclinations of up to 18° in all directions. A flexible in-house hammer concept allows for the use of tamper weights with varying weights. Therefore, concrete, steel or timber piles can be optimally installed. The new LRH 200 offers a further range of applications: When configured as a drilling rig, a high-performance drilling drive provides the necessary torque for the common single pass methods such as continuous flight auger, full displacement and down-the-hole drilling pr...

Compare

01/16

Technical data – LRH 200 piling rig

PDF (1.5 MB)

Technical data (USA) – LRH 200 piling rig

PDF (1.5 MB)

Overview LRH series piling rigs

PDF (0.8 MB)

Overview LRH series (USA) piling rigs

PDF (0.8 MB)

Solutions for deep foundation work

PDF (8.7 MB)

MyJobsite

PDF (0.3 MB)

MyJobsite

One single tool for the collection, documentation and analysis of all process, machine, construction site and position data.

Recording of working processes (PDE)

With the PDE process data recording system machine data is recorded during the working process.

LIPOS positioning system

Accurate positioning and precise execution of piling or drilling processes.

Ground Pressure Visualization

The Ground Pressure Visualization calculates the current ground pressure of the machine in real time and compares it with the specified safety limits of the relevant jobsite.

Remote control

The remote control simplifies the loading process for transportation as well as the assembly of the machine.

Eco silent mode

With the eco silent mode the engine speed can be reduced to a predefined, required level. With this feature a notable reduction in diesel consumption can be achieved without any impact on operational output. Noise emissions are thus also lowered.

Continuous flight auger drilling

The loosened soil material is continuously conveyed to the surface using a continuous auger, the so-called continuous flight auger.

Impact driving

Impact driving uses a hydraulic hammer for the installation of various types of pile. The hammer’s ram mass impacts on the pile.

Full displacement drilling

Full displacement drilling is a modification of continuous flight auger drilling. The drilling tool used is a smooth pipe with an auger-type starter piece.

Wet soil mixing

For wet mixing a self-hardening suspension is introduced into the ground.

Down-the-hole drilling

For down-the-hole drilling a hammer is mounted on the lower end of a drill rod. The hammer is activated by adding compressed air.
